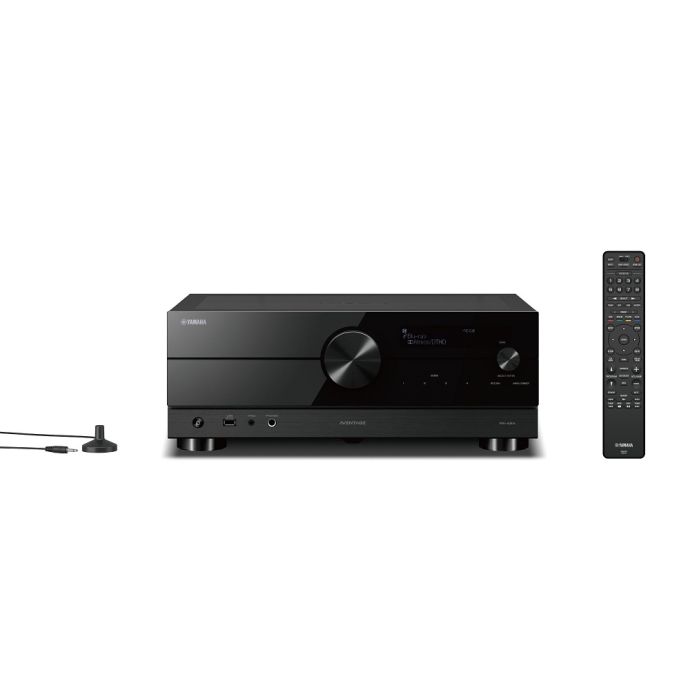

YAMAHA RX-A2A Black Receiver 7.2

With its powerful design, the A2A was made to deliver rock-solid, superior sound. This impressive AV receiver will completely transform your home cinema with professional-quality audio and video.

MOVIES AND GAMES LIKE NEVER BEFORE
4K/120Hz*
Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
HDR10+*
Provides deeper contrast and more realistic images that stay true to the creators' intent.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*
Ensures seamless motion and transitions to enhance your performance.
HDMI multiple Input with latest technology*
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.

SIMPLE TO SET UP, SIMPLE TO USE
MusicCast App

Explore the power of multi-room audio, access your sources and streaming devices, and control your AV receiver, all through your smartphone.

Voice Control
Works with Alexa and Google Assistant, so your AV receiver is always at your command. Through AirPlay 2, you can stream your music via voice control operation Siri from Apple iOS device. *Availability varies by region.

AV Setup Guide App
Offers expert guidance through installation, cable connections, and various other settings.

DESIGNED FOR YOUR SPACE
YPAO™ R.S.C/Multi-Point

Calibrates sound to your room by analyzing room acoustics and measuring speaker characteristics. This feature also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos®, DTS:X®.

Compatible with Wireless Rear Speaker

Gives you the freedom to arrange your rear speakers wirelessly to suit your home decor.

Dynamic and Compelling Design
Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this AV receiver looks and sounds perfect in your home.



Specifications :


• Channel: 7.2
• Rated Output Power :(1kHz, 1ch driven) 125 W (8 ohms, 0.9% THD)
• Rated Output Power (:20Hz-20kHz, 2ch driven) 100 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power :(1kHz, 1ch driven) 150 W (8 ohms, 10% THD) 150 W (8 ohms, 10% THD)
• High Slew Rate Amplifier :Yes
• Surround Sound Processing Surround:AI: N/A
• CINEMA DSP :Yes
• DSP Programs :17
• Dialog Level Adjustment :Yes
• Virtual Presence Speaker :Yes
• Virtual Surround Back Speaker :Yes
• Dialogue Lift :Yes
• SILENT CINEMA / Virtual CINEMA DSP: Yes
• Dolby Atmos Y:es
• Dolby Atmos Height Virturalizer :Yes (via future update)
• Dolby TrueHD :Yes
• Dolby Digital Plus :Yes
• Dolby Surround :Yes
• DTS:X :Yes
• DTS-HD Master Audio :Yes
• Audio Features File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
• Pure Direct :Yes
• Compressed Music Enhancer :Yes
• High-resolution Music Enhancer :N/A
• YPAO multi-point measurement: Yes
• YPAO Volume :Yes
• Adaptive DRC (Dynamic Range Control) :Yes
• Initial Volume & Maximum Volume Setting :Yes
• A.R.T. Wedge :Yes
• Bi-amp capability :Yes
• Audio Delay :Yes (0-500 ms)
• DA Converter 384 kHz / 32-bit BB PCM5102A
• Video Features HDMI eARC :Yes
• HDMI Audio Return Channel :Yes
• HDMI Pass-through: 8K60B, 4K120AB (via future update)*HDMI 1-3
• HDMI Up-scaling: Yes up to 4K
• HDMI Up-conversion :N/A
• Dolby Vision :Yes
• HDR 10+ :Yes (via future update)
• VRR/ALLM/QMS/QFT :Yes (via future update)
• Video adjustment :N/A
• Connectivity MusicCast Surround :Yes
• HDMI Input/Output: 7 / 1
• HDMI CEC :Yes
• USB Input :Yes
• Network Port :Yes
• Wi-Fi :mYes (2.4 / 5 GHz)
• AirPlay 2 :Yes
• Bluetooth :Yes (SBC / AAC)
• Front AV Input USB
• Digital Audio Input/Output: Optical 1 / 0
• Digital Audio Input/Output: Coaxial 1 / 0
• Analog Audio Input/Output : 4 / 0
• Phono Input : Yes
• XLR Terminal : nN/A
• Component Video Input/Output : N/A
• Composite Video Input/Output : N/A
• Preout : 2.2-ch
• Headphone Output : 1
• Tuner Section FM/AM Tuner Yes (Availability varies by region.)
• DAB Tuner Yes (Availability varies by region.)
• User Interface On-screen display Graphical User Interface
• SCENE Yes (8 sets)
• App Control : Yes (iPhone / iPad / Android phone / tablet)
• Web Browser Control :Yes
• Remote Control Unit : Yes
• Zone 2 Audio Output Preout
• Zone 3 Audio Output N/A
• Zone 4 Audio Output N/A
• Powered Zone Zone 2
• Zone Video Output N/A
• Zone B Output N/A
• Zone GUI :N/A
• RS-232C Interface :N/A
• +12V Trigger Output 1
• Remote (IR) Input/Output : 1 / 1
• Party Mode :Yes
• General Standby Power Consumption (IR only) : 0.1 W
• Auto Power Standby  :Yes
• ECO mode  :Yes
• Dimensions (W x H x D) 435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)17-1/8"W x 6-3/4"H x 14-5/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-5/8"D)
• Weight 10.2 kg; 22.5 lbs.
