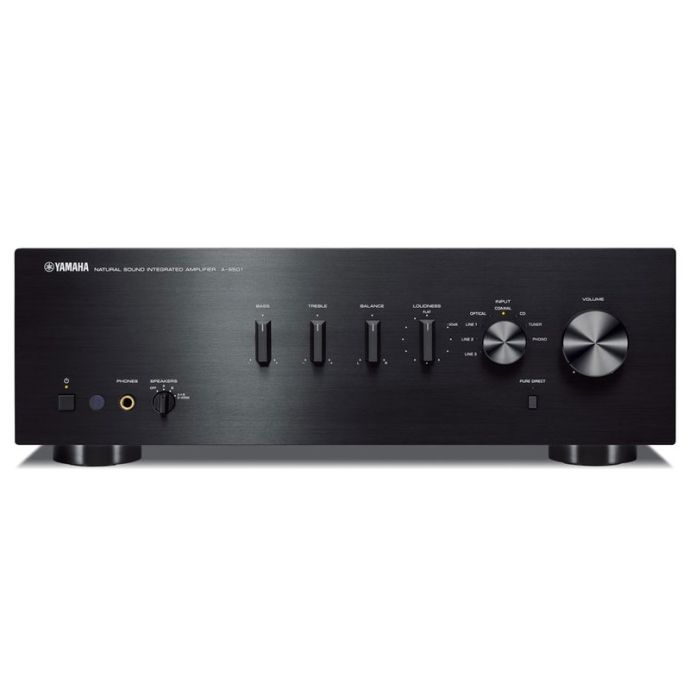

Impressively high sound quality with a wide range of
features and an elegant appearance.
An integrated amplifier with the advantage of digital input.
|
A-S501 |
|
|
Specifications |
|
|
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) |
85 W + 85 W (0.019% THD) |
|
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) |
120 W + 120 W |
|
High Dynamic Power/Channel (8/6/4/2 ohms) |
130/150/185/220 W |
|
Damping Factor |
240 |
|
Frequency Response |
10 Hz-100 kHz +/-1.0 dB |
|
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) |
0.019% (50 W/8 ohms) |
|
Signal-to-Noise Ratio (CD) |
99dB (input shorted, 200 mV) |
|
Audio In / Out |
8 * 2 |
|
Digital Input |
Yes (optical / coaxial) |
|
Subwoofer Out |
Yes |
|
DC out |
Yes |
|
Pure Direct |
Yes |
|
ToP-ART |
Yes |
|
Standby Power Consumption |
0.5W |
|
Power Management (Auto Power Standby) |
Yes |
|
Dimensions (W x H x D) |
435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4” |
|
Weight |
10.3 kg; 22.7 lbs. |
