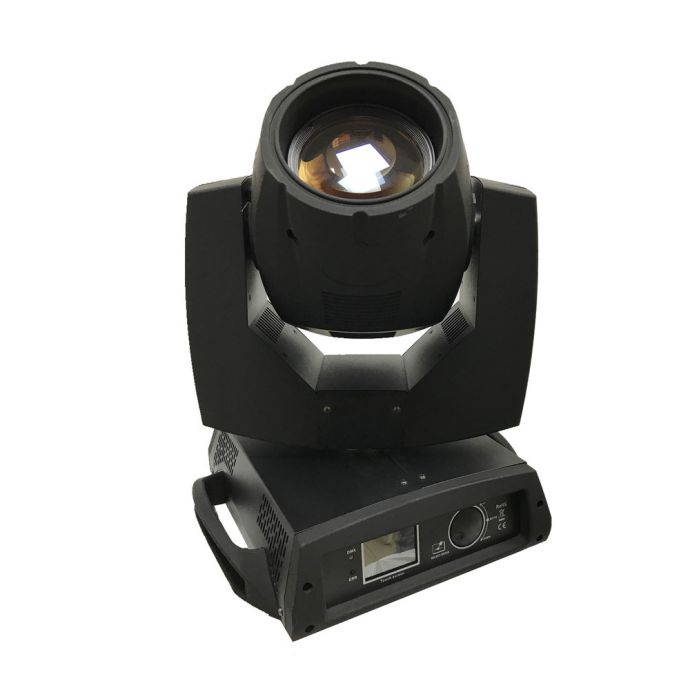

SHARPY 7R 230W BEAM LIGHT
NEW CHARACTERS
With upgrade circuit board;
Adopting color LCD touch screen (2.8 inches) in display board;
Random replacement between English and Chinese;
Simple and clear;
Can be customized brand name in display;
Words in the display can change direction according to the products are heads up or upside down;easy to operate
TECHNICAL PARAMETER
20CH Special Function: Double focus, containing eight prism focus
Control channel: 20DMX 512 channels
Voltage: AC100~250V, 50~60 Hz
life span: 2000 hours
Lamp: 7R YODN 230W lamp
Scan: Pan: 540°, Tilt: 270°
Largest rotating speed: Pan: 2.45s, Tilt: 1.3s
Precise scan: Pan: 0.008°, Tilt: 0.004°
Color wheel: two color wheels, 14 plugged colors plus white, with half color and rainbow effect
Gobo wheel: one fixed gobo wheel, 17 plugged gobos plus white, with high speed gobo rotation effect
Prism: one rotating eight-prism, atomization effect
Strobe: strobe frequency can be 15 times / second Focus: electronic liner focus at 0°-3.8°
Automatic Pan and Tilt repositioning system if accidentally knocked out of place and with correct positioning function
Available for setting macro instruction in advance
Controller reset function, with automatic switch
Electronic monitoring and the position error correction
Built-in cooling monitoring system
DMX channel level monitoring
Automatic data transmission fault diagnosis system
Up to IP20 degree of protection
Characteristics: light, highlighted, fast, and mute
Light size: 44*33*47 cm
Net weight: 16 kg
Gross weight: 25kg
