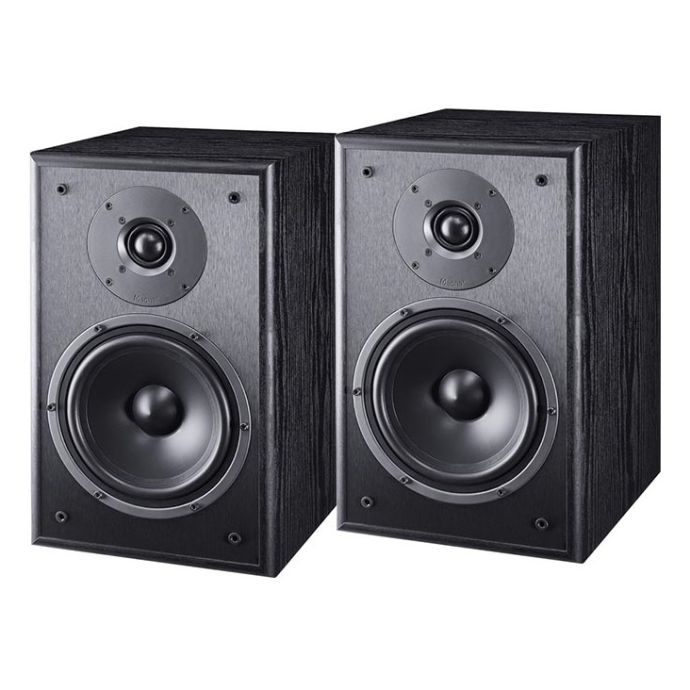

Magnat Monitor S30 Bookshelf Speakers 6.5" 100W RMS Two-Way Hi-Fi Walnut
No speaker line would be complete without a well-designed bookshelf speaker. Because on the one hand, sometimes this is exactly the preferred solution, on the other hand, the simple lack of space can make smaller converters necessary. With the S 30, the S-Line also offers just that.
Like the floor models, with a width of only 21.5 cm and a height of 35 cm, the S 30 really fits everywhere. It is the ideal speaker for entry into ambitious stereo and can be used perfectly as a surround speaker for expansion plans.
Technically, the S 30 offers the familiar 170 mm bass driver and 28 mm dome tweeter made of fabric composite material. Thus equipped, it reproduces frequencies between 34 and 38,000 Hz.
Details like the compact connection terminal with its gold-plated and encapsulated screw terminals or the rubber tuning damping feet prove that compact dimensions don't have to mean sacrifice.
Powerful speaker
Use it as a hi-fi speaker or as an effects speaker in your home theater
High quality wooden decorations
OPERATING PRINCIPLE
2-way Speaker Library
2 way bass reflex
CHASSIS
FE-Dynamics woofer and midrange-bass drivers with low partial vibration, coated paper cones, new phase-optimized caps and linear magnet systems.
Midrange-woofer driver with a robust, metal chassis
Newly developed 28mm tweeter with composite fabric dome tweeter, front panel with optimized radiation sound path and powerful ferrite unit for excellent dynamics
CROSSOVER
Optimized phase and amplitude
Connection terminal with gold-plated and encapsulated screw terminals
SPEAKER CABIN
Resonance damping rubber feet
Robust low resonance cabin construction using E1-MDF panels
Airflex port with rounded reflective opening to minimize annoying resonances
Characteristics:
Bookshelf / bookshelf speaker 2 way bass reflex
6.5" woofer-midrange 1.1" dome-tweeter
Power Handling (RMS/Max.): 100/200 Watts
Sensitivity (2.8V/1m): 90dB
Resistance: 4 – 8 Ohm
Crossover frequencies: 2900 Hz
Recommended amplifier output: 30 – 200 Watts
Color: Black, Walnut
Weight: 5.8 kg (per piece)
Dimensions: 215 x 354 x 270 mm
