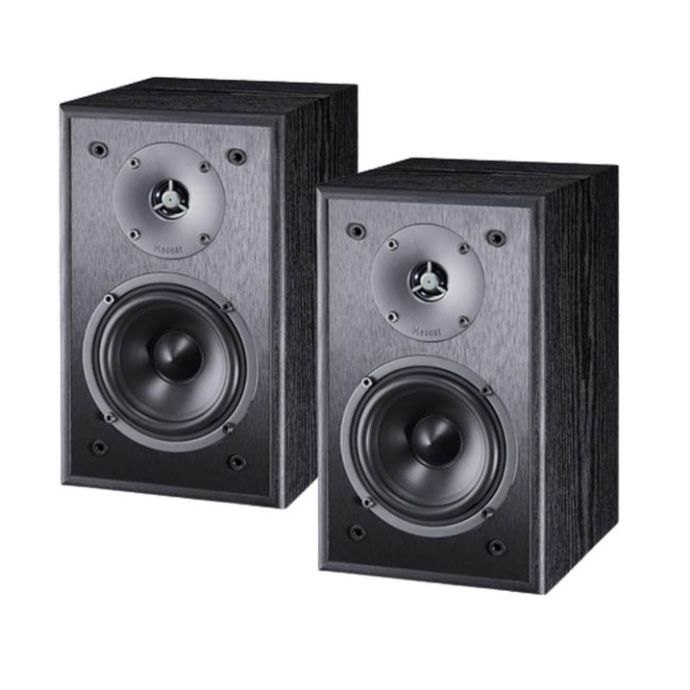

Magnat Monitor S10B Speaker Bookshelf 4.3" 60W RMS Two Way Black
If there is really very little space available or you are looking for a more compact variant for the surround channels, the S 10 B bookshelf speaker is the ideal employment in the Monitor S-Line. Just 15cm wide, 25cm high and only 19cm deep, we've designed it around installed drivers.
The S 10 B features the 110 mm woofer familiar from the series and the 13 mm Mylar dome. One really has to make concessions here with the size, because acoustically our little speaker proves to be on the higher end.
The solid MDF enclosure is also decorated with our smaller fine wood trims in black and walnut and the dark baffle is here as well as the removable fabric cover for all those who don't want to see the flawless technology.
OPERATING PRINCIPLE
2 way bookshelf speaker
CHASSIS
Midrange-woofer driver with robust, coated metal chassis
13mm tweeter with ultra-lightweight Mylar dome and powerful ferrite unit for accurate high-frequency reproduction
FE-Dynamics bass-midrange woofer driver with low partial oscillation, coated paper cone and distortion-optimized magnet system
CROSSOVER
Optimized phase and amplitude
SPEAKER CABIN
Robust low resonance cabin construction using E1-MDF panels
Detachable front cover with acoustic cloth
Resonance damping rubber feet
Characteristics:
Woofer 110 mm. 13 mm mid-sized dome-tweeter
Power Handling (RMS/Max.): 60 / 120 Watts
Sensitivity (2.8V/1m): 88 dB
Resistance: 4 – 8 Ohm
Frequency response: 42 – 32,000 Hz
Crossover Frequencies: 3,400 Hz
Recommended amplifier output: 20 – 120 Watt
Color: Black, Walnut
Dimensions (WxHxD): 149 x 250 x 190 mm
Weight: 2.5 kg (per piece)
Magnat Monitor S10B Speaker Bookshelf 4.3" 60W RMS Two Way Black
If there is really very little space available or you are looking for a more compact variant for the surround channels, the S 10 B bookshelf speaker is the ideal employment in the Monitor S-Line. Just 15cm wide, 25cm high and only 19cm deep, we've designed it around installed drivers.
The S 10 B features the 110 mm woofer familiar from the series and the 13 mm Mylar dome. One really has to make concessions here with the size, because acoustically our little speaker proves to be on the higher end.
The solid MDF enclosure is also decorated with our smaller fine wood trims in black and walnut and the dark baffle is here as well as the removable fabric cover for all those who don't want to see the flawless technology.
OPERATING PRINCIPLE
2 way bookshelf speaker
CHASSIS
Midrange-woofer driver with robust, coated metal chassis
13mm tweeter with ultra-lightweight Mylar dome and powerful ferrite unit for accurate high-frequency reproduction
FE-Dynamics bass-midrange woofer driver with low partial oscillation, coated paper cone and distortion-optimized magnet system
CROSSOVER
Optimized phase and amplitude
SPEAKER CABIN
Robust low resonance cabin construction using E1-MDF panels
Detachable front cover with acoustic cloth
Resonance damping rubber feet
Characteristics:
Woofer 110 mm. 13 mm mid-sized dome-tweeter
Power Handling (RMS/Max.): 60 / 120 Watts
Sensitivity (2.8V/1m): 88 dB
Resistance: 4 – 8 Ohm
Frequency response: 42 – 32,000 Hz
Crossover Frequencies: 3,400 Hz
Recommended amplifier output: 20 – 120 Watt
Color: Black, Walnut
Dimensions (WxHxD): 149 x 250 x 190 mm
Weight: 2.5 kg (per piece)
