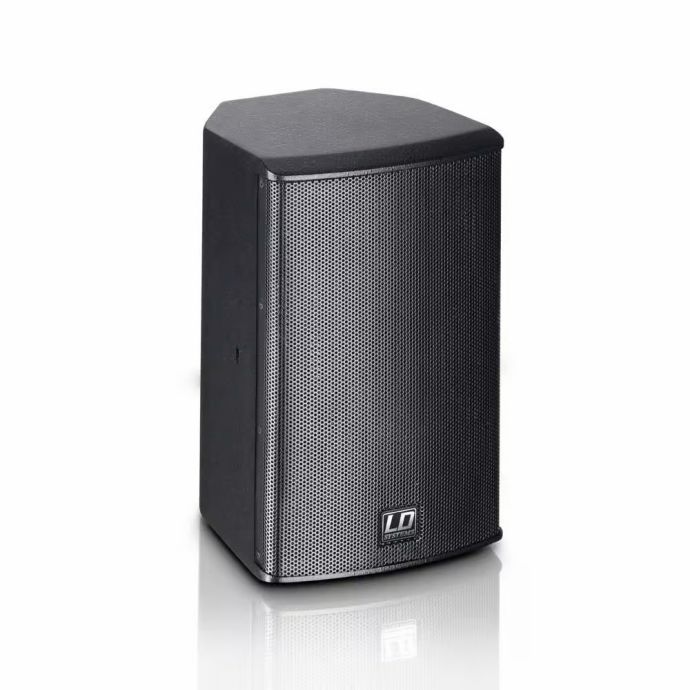

The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

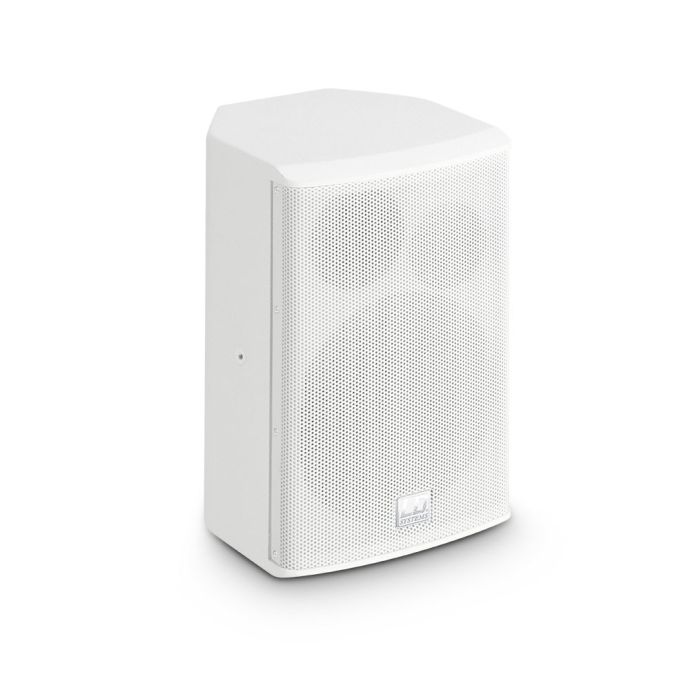

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Product type - Installation Loudspeakers
Type - Wall-mounted Loudspeaker
Low/mid Woofer dimensions - 6.5 "
Woofer dimensions (mm) - 165 mm
Woofer magnet - Ferrite
Woofer brand - Custom-made
HF driver dimensions - 1 "
HF driver dimention (mm) - 25 mm
HF driver magnet - Ferrite
HF driver brand - Custom-made
Power amplifier (Class A) - Class A/B
Dispersion (H x V) - 60 x 60 °
System Power (RMS) - 50 W
Frequency response - 55 - 20000
Max. SPL - 108 dB
Protection circuits - HF Driver, over voltage
Controls - switchable auto power mode, mains switch (on/off), volume control
Indicators - Power
Line input connectors - XLR, 6.3 mm jack
Line output connectors - XLR
Power supply - transformer
Operating voltage - 220 V AC - 240 V AC, 50-60 Hz
Cabinet material - 12 mm MDF
Cabinet surface - texture paint
Cabinet colour - Black
Cabinet construction - Bass Reflex
Width - 200 mm
Height – 320 mm
Depth - 200 mm
Weight - 5,25 kg
Features - Wall bracket
The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Product type - Installation Loudspeakers
Type - Wall-mounted Loudspeaker
Low/mid Woofer dimensions - 6.5 "
Woofer dimensions (mm) - 165 mm
Woofer magnet - Ferrite
Woofer brand - Custom-made
HF driver dimensions - 1 "
HF driver dimention (mm) - 25 mm
HF driver magnet - Ferrite
HF driver brand - Custom-made
Power amplifier (Class A) - Class A/B
Dispersion (H x V) - 60 x 60 °
System Power (RMS) - 50 W
Frequency response - 55 - 20000
Max. SPL - 108 dB
Protection circuits - HF Driver, over voltage
Controls - switchable auto power mode, mains switch (on/off), volume control
Indicators - Power
Line input connectors - XLR, 6.3 mm jack
Line output connectors - XLR
Power supply - transformer
Operating voltage - 220 V AC - 240 V AC, 50-60 Hz
Cabinet material - 12 mm MDF
Cabinet surface - texture paint
Cabinet colour - Black
Cabinet construction - Bass Reflex
Width - 200 mm
Height – 320 mm
Depth - 200 mm
Weight - 5,25 kg
Features - Wall bracket
