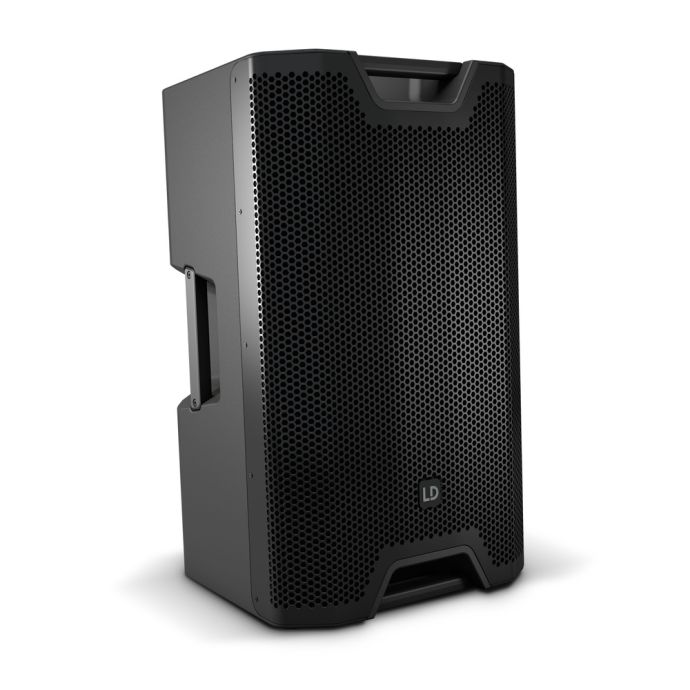

Product type PA loudspeaker
Type Powered
Low/mid Woofer dimensions 15 "
Woofer dimensions (mm) 381 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF driver dimention (mm) 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1.4 "
HF driver voice coil 35 mm
Amplifier Class D
Dispersion (H x V) 90° x 50°
System Power (RMS) 300 W
Peak power 1200 W
Frequency response 48 Hz - 20000 Hz
Crossover frequency kHz 2 kHz
Max. SPL (Peak) 128 dB
Protection circuits Multiband limiter, over voltage, over-current, thermal overload
Controls 2 x gain, On / off switch, Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs 1
Line input connectors 3.5 mm TRS
Line outputs 1
Line output connectors XLR
Operating voltage SMPS
Power consumption 150 W
Ambient temperature (in operation) 0 - 40 °C
Operating voltage 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity < 80 %, not condensing
Fuse T4AL 250 V
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Mounting 36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle 55 °
Width 416 mm
Height 695 mm
Depth 415 mm
Weight 24,3 kg
Accessories (included) Power cord
