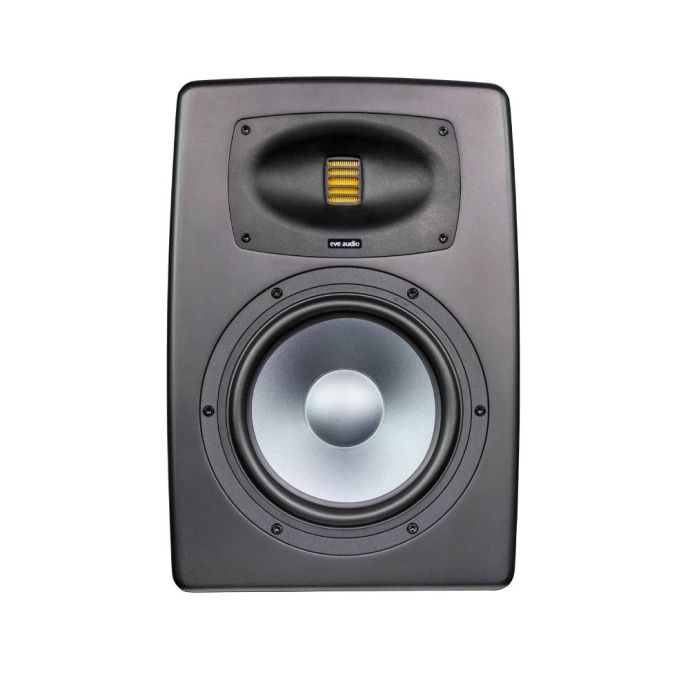

The EXO 28 is the largest monitor of the EXO series – a 2-way monitor with the presence of a full-sized system.
EXO 28 is the perfect monitor for those who demand the highest standards for their audio systems. Whether in large studios, immersive productions, or high-end mastering suites, the EXO 28 stands for confident performance and maximum control. Thanks to its controlled dispersion characteristics, the EXO 28 is also perfectly suited for immersive setups such as Dolby Atmos. To simplify mounting, the EXO 28 is equipped with four M6 threaded mounting points on the bottom side of the enclosure.
General
information
Dimensions
(mm)
276x401x331
11,6 kg
(25.6 lb)
Output
power per speaker
280 W
Tweeter
Model
Precision
AirMotion Tweeter (PAMT)
Waveguide
Technology
Guided
Directivity Control (GDC)
Output
power
140 W / 1%
Woofer
Woofer
diameter
8"
Diaphragm
material
Coated
aluminum
Woofer
voice coil
Air Stream
Optimized Voice Coil Design
Output
power
140 W / 1%
Acoustics
Frequency
range (- 3 dB at 1 m full space)
37 Hz - 24
kHz
Max. SPL
(full space) > 100 Hz
120 dB
Max. SPL
(half space) > 100 Hz
126 dB
Cross-over
frequency
2200 Hz
Free-field
frequency response (on axis)
Features
Protection
Limiter
Yes
Wake-on-LAN
Yes
Wake-on-Signal
Yes
Automatic
Standby Mode
Yes
(Adjustable)
Status LED
Yes (Shows
8 different states, e.g. Signal overload)
Mounting
Point
Bottom side
M6 Mounting hole pattern of 50.8x107.9 mm (Fits K&M 24352 and K&M
24354)
User
Interface (Filter and settings access)
Rear OLED
display with SMART Control Knob
Adjustable
Settings
Volume
-?to
+10 dB
High-Shelf
Filter (-5 dB to +3 dB)
> 3 kHz
Mid EQ (-3
dB to +3 dB)
2,2 kHz
Desk Filter
Cut (-5 dB to 0 dB)
400 Hz
Low-Shelf
Filter (-5 dB to +3 dB)
< 300 Hz
Max. Input
Level
-10 dBV
(max. 16.5 dBu) / +4 dBu (max. 20 dBu)
Input
select
Balanced,
Unbalanced, S/PDIF L/R/Mono
LED
Brightness
Continuously
dimmable from 0% to 100%
IP-Adress
Configuration
Manual/Automatic
(DHCP)
Standby
Mode
15 min / 30
min / 60 min / off
Connections
Balanced
XLR
Analog
signal input
Unbalanced
RCA In
Analog
signal input
S/PDIF
digital
Coaxial
in-/output (96 kHz / 24-bit)
LAN
Ethernet
and software access
Power
consumption
Standby
< 1 W
Idle Power
Consumption
7 W
Peak Power
Consumption
400 W
