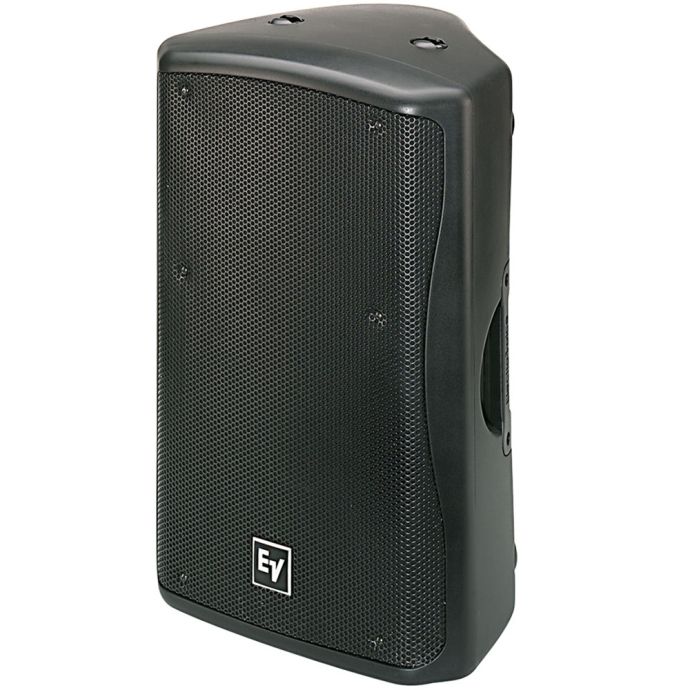

ElectroVoice Zx5-60B 600 Watt Passive Speaker

Freq. Response1 (-3 dB): 58 Hz - 18 kHz

Freq. Range1 (-10 dB): 39 Hz - 20 kHz

Rec. Hipass Frequency: 36 Hz

Axial Sensitivity1: 98 dB (1W/1m)

Max. Calculated SPL: 132 dB

Horizontal Coverage: 60°

Vertical Coverage: 60°

Power Handling (Passive): 600W Continuous, 2400W Peak

LF Power Handling (Biamp): 500W Continuous, 2000W Peak

HF Power Handling (Biamp): 40W Continuous, 160W Peak

LF Transducer: DVX3150, 15 in (381mm)

Driver HF Transducer: ND2, 1 in (25.4mm) exit Neodymium Compression Driver

Crossover Frequency: 1.5 kHz

Nominal Impedance: 8 Ohms

Minimum Impedance: 6.5 Ohms

Connectors: (2) Neutrik Speakon NL4’s

Enclosure Material: Polypropylene Structural Foam

Suspension: Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure

Grille: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

Environmental Spec: IEC 529 IP24 / IP44 (PI Version)

Dimensions (H x W x D): 692mm x 446mm x 411mm

Net Weight: 22.2 kg

Weight: 26.0 kg
