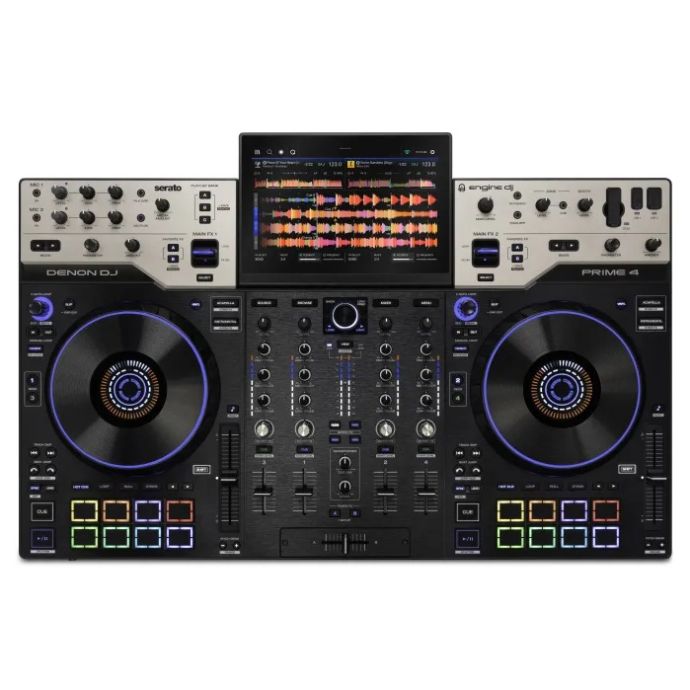

Denon Dj Prime 4 G2 Standalone Dj Controller

Specifications:

Main Outputs – Balanced (XLR)

Outputs

Main, Booth, Zone

D/A Conversion

ESS ES9017S 32-bit DAC

Dynamic Range

Up to 119 dB (A-weighted)

Maximum Output Level

+20 dBu (8 Vrms)

Frequency Response

20 Hz – 20 kHz

Total Harmonic Distortion + Noise

0.001%

Main Outputs – Unbalanced (RCA)

Outputs

Main RCA (Left / Right)

D/A Conversion

ESS ES9017S 32-bit DAC

Dynamic Range

Up to 118 dB (A-weighted)

Maximum Output Level

+14 dBu (4 Vrms)

Frequency Response

20 Hz – 20 kHz

Total Harmonic Distortion + Noise

0.003%

Microphone Inputs

Inputs

2 ? XLR / ?” combo jacks

Input Type

Balanced

Dynamic Range

100 dB

Maximum Input Level

100 mVrms

Frequency Response

20 Hz – 20 kHz

Total Harmonic Distortion + Noise

< 0.005%

Instrument Input

Input

Mic 2 (Instrument mode)

Input Type

Unbalanced, mono

Dynamic Range

111 dB (A-weighted)

Maximum Input Level

+15 dBu (4.3 Vrms)

Frequency Response

20 Hz – 20 kHz

Total Harmonic Distortion + Noise

0.002%

Channel 3 & 4 Inputs – Line

Input

RCA (Left / Right)

Input Type

Line level

Dynamic Range

114 dB (A-weighted)

Maximum Input Level

+14 dBu (4 Vrms)

Frequency Response

20 Hz – 20 kHz

Total Harmonic Distortion + Noise

0.001%

Channel 3 & 4 Inputs – Phono

Input

RCA (Left / Right)

Input Type

Phono (RIAA equalized)

Maximum Input Level

-17 dBu

Gain

+31.7 dB @ 1 kHz

Frequency Response

RIAA curve (vinyl-accurate)

Headphone Output

Outputs

?” and 3.5 mm headphone jacks

D/A Conversion

ESS ES9017S 32-bit DAC

Dynamic Range

113 dB

Maximum Output Level

+14 dBu

Frequency Response

20 Hz – 20 kHz

Output Power

180 mW @ 32 Ω / 10 mW @ 600 Ω

Total Harmonic Distortion + Noise

0.001%

Power

Input Voltage

100–240 V AC

Frequency

50 / 60 Hz

Power Consumption

100 W

Performance Pads

Pads

(16) MPCe velocity and pressure-sensitive pads with 3D-sensing technology

Faders

Channel Faders & Crossfader

(5) 45 mm channel faders

Side-mounted to reduce dust and debrisbuildup

Smooth, low-noise performance

Long-life fader design

Display

Main Display

1280?800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)

Wheel Displays

RGB LED array w/ (60) LEDs per display

CPU

Processor

8-core ARM® processor

RAM

4 GB

Wi-Fi & Bluetooth

Wi-Fi

2.4GHz/5GHz

802.11a/b/g/n/ac

Wi-Fi 5

Bluetooth

Bluetooth v5.4

Supports Bluetooth keyboards and audio input devices

Supported Media

File Systems

exFAT (recommended)

FAT32

Playable Media

AAC/M4A

AIF/AIFF (44.1–192 kHz, 16–32-bit)

ALAC

FLAC

MP3 (32–320 kbps)

MP4

Ogg Vorbis

WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

Onboard Streaming Services (Subscription required)

Amazon Music Unlimited

Apple Music

Beatport

SoundCloud Go+

TIDAL

Lighting

Built-in DMX Interface (Isolated)

Direct control of DMX lighting systems without external hardware

1 Universe (512 channels)

Onboard Smart Lighting

Philips Hue

Nanoleaf

Supported DMX Interfaces/Controllers (maximum 2 universes, 1024 channels)

SoundSwitch DMX Micro

SoundSwitch Control One

Compatible USB Devices

Keyboard Support

USB keyboards

General

Dimensions (width x depth x height)

Inches: 30 x 19.57 x 4.13

Centimeters: 76.2 ? 49.71 ? 10.49

Weight

21.83 lbs.

9.9 kg

Connections

Inputs

Microphones/Instrument

Mic 1: XLR + 1/4” Combo Jack

Mic 2/Instrument: XLR + 1/4” Combo Jack

Line/Phono

Channel 3: Stereo Pair (RCA)

Channel 4: Stereo Pair (RCA)

Outputs

Main

(2) XLR

Stereo Pair (RCA)

Booth

(2) XLR

Zone

(2) XLR

Headphones

1/4” Stereo Jack

3.5-mm Stereo Mini-Jack

Lighting

DMX

Media Inputs

USB

USB 1: Type-C, USB 2.0 High Speed, 1.0 A

USB 2: Type-A, USB 2.0 High Speed, 1.0 A

USB 3: Type-A, USB 3.0 SuperSpeed, 1.0 A

Computer/Media: Type-C w/ locking thread, USB 3.0 SuperSpeed, 2.0 A - This port is a dual-role port for a computer or media device

SD Media Input

SD, SDHC, SDXC

Internal HD

SATA 3.0

Power

IEC

Locking IEC
