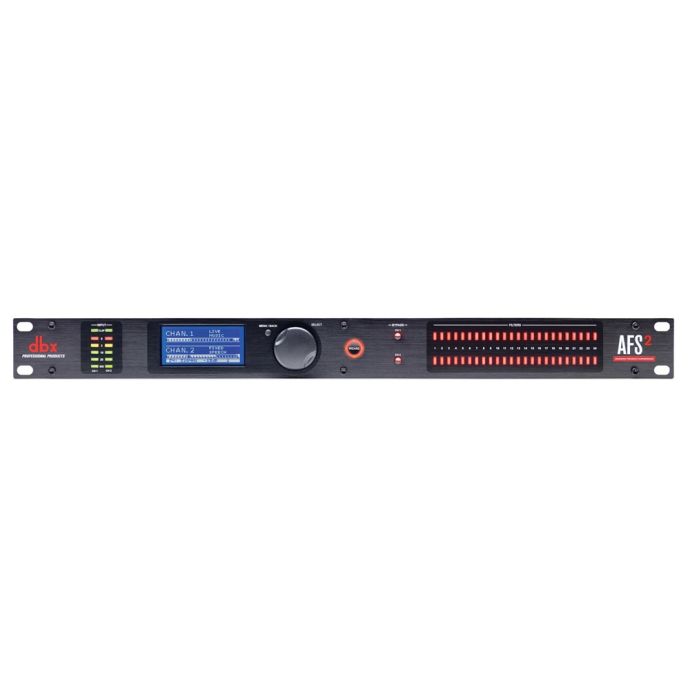

DBX AFS2 Feedback Controller 2-Channel

Specifications

Number of Inputs           2

Input Connectors           Female XLR and 1/4” TRS

Input Type                           Electronically balanced/unbalanced, RF filtered

Input Impedance            Balanced 50kΩ, Unbalanced 25kΩ

Max input line level       +20 dBu

CMRR   > 40dB, typically >55dB @ 1kHz

Number of Outputs       2

Output Connectors       Male XLR and 1/4” TRS

Output Type                      Electronically balanced/unbalanced, RF filtered

Output Impedance        Balanced >120 Ω, Unbalanced >60 Ω

Max Output Level           +20 dBu

A/D Converter                  dbx Type IV™ Conversion System

A/D Dynamic Range      >113 dB A-weighted, >110 dB unweighted, 22kHz BW

Type IV Dynamic Range               >119 dB, A-weighted, 22kHz BW; >117 dB, unweighted, 22kHz BW

A/D Conversion               24-bit

Sample Rate                     48kHz

D/A Dynamic Range      112 dB A-weighted, 109 dB unweighted

D/A Conversion               24-bit

Dynamic Range               109 dB A-weighted, 106 dB unweighted, 22kHz BW

THD+Noise                        0.003% typical at +4 dBu, 1 kHz

Frequency Response    20Hz – 20kHz, +/- 0.5dB

Interchannel Crosstalk >80 dB typical

Crosstalk input to output            >80 dB

Operating Voltage          100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz

Power Consumption     9 W

Unit Weight                       2.04 kg

Dimensions                      4.4cm (H) x 14.6cm (D) x 48.26cm (W)
