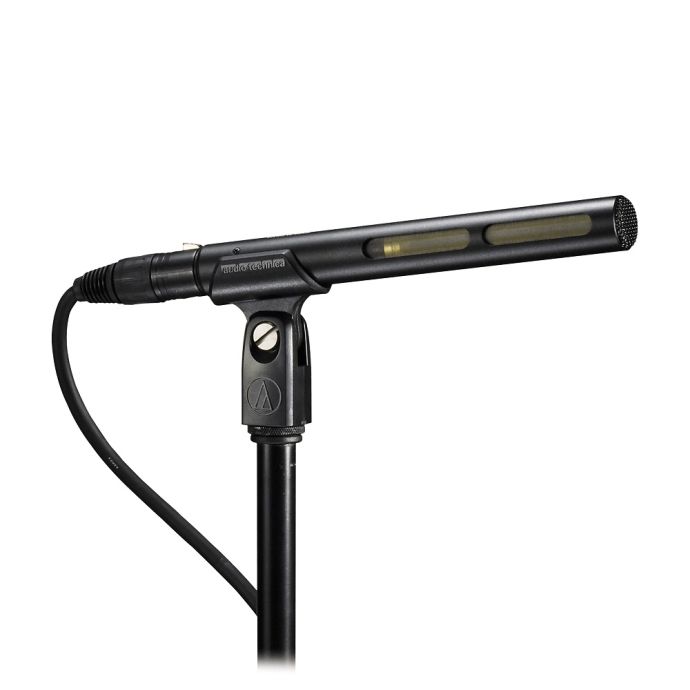

Audio-Technica’s AT875R is designed for video production and broadcast (ENG/EFP) audio acquisition. Audio-Technica’s shortest shotgun microphone, it mounts conveniently on a DV camcorder without adding noticeable heft, and is ideal for use with compact digital cameras. This high-performance microphone offers a narrow acceptance angle of line + gradient design. It also features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of mic.
Specifications:
Element
Fixed-charge
back plate, permanently polarized condenser
Polar Pattern
Line + gradient
Frequency Response
90-20,000 Hz
Open Circuit Sensitivity
–30 dB
(31.6 mV) re 1V at 1 Pa
Maximum Input Sound Level
127 dB
SPL, 1 kHz at 1% T.H.D.
Dynamic Range
107 dB, 1
kHz at Max SPL
Signal-to-Noise Ratio
74 dB, 1 kHz at 1 Pa
Phantom Power Requirements
11-52V DC, 2 mA typical
Weight
80 g (2.8 oz)
Dimensions
175.0 mm (6.89") long,
21.0 mm (0.83") diameter
Output Connector
Integral 3-pin XLRM-type
Accessories Included
AT8405a
stand clamp for 5/8"-27 threaded stands; 5/8"-27
to
3/8"-16 threaded adapter; windscreen; two O-Rings;
Audio-Technica’s AT875R is designed for video production and broadcast (ENG/EFP) audio acquisition. Audio-Technica’s shortest shotgun microphone, it mounts conveniently on a DV camcorder without adding noticeable heft, and is ideal for use with compact digital cameras. This high-performance microphone offers a narrow acceptance angle of line + gradient design. It also features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of mic.
Specifications:
Element
Fixed-charge
back plate, permanently polarized condenser
Polar Pattern
Line + gradient
Frequency Response
90-20,000 Hz
Open Circuit Sensitivity
–30 dB
(31.6 mV) re 1V at 1 Pa
Maximum Input Sound Level
127 dB
SPL, 1 kHz at 1% T.H.D.
Dynamic Range
107 dB, 1
kHz at Max SPL
Signal-to-Noise Ratio
74 dB, 1 kHz at 1 Pa
Phantom Power Requirements
11-52V DC, 2 mA typical
Weight
80 g (2.8 oz)
Dimensions
175.0 mm (6.89") long,
21.0 mm (0.83") diameter
Output Connector
Integral 3-pin XLRM-type
Accessories Included
AT8405a
stand clamp for 5/8"-27 threaded stands; 5/8"-27
to
3/8"-16 threaded adapter; windscreen; two O-Rings;
