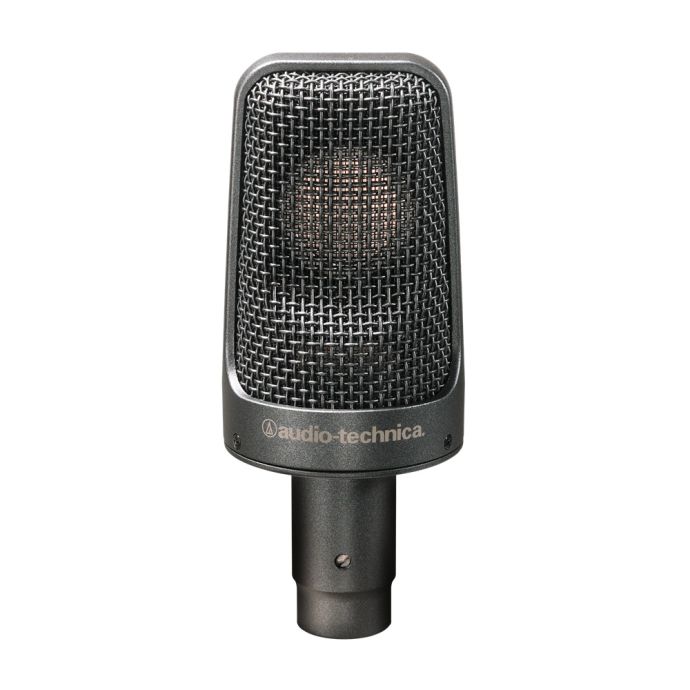

The Artist Elite® AE3000 delivers supreme performance at extreme SPLs. This high-SPL large diaphragm cardioid condenser instrument mic excels in applications such as guitar cabinets, toms, snare, timpani, horns and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
Specs:
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20 - 20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -43 dB (7.0 mV) re 1V at 1 Pa
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)
Dynamic Range: 137 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
Phantom Power Requirements : 11-52V DC, 3 mA typical
Weight: 170g
Dimensions: 4.55" (115.5 mm) long, 1.89" (48.0 mm) maximum diameter
Output Connector: Integral 3-pin XLRM-type
Accessories Included: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
The Artist Elite® AE3000 delivers supreme performance at extreme SPLs. This high-SPL large diaphragm cardioid condenser instrument mic excels in applications such as guitar cabinets, toms, snare, timpani, horns and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
Specs:
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 20 - 20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -43 dB (7.0 mV) re 1V at 1 Pa
Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL, with 10 dB pad (nominal)
Dynamic Range: 137 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
Phantom Power Requirements : 11-52V DC, 3 mA typical
Weight: 170g
Dimensions: 4.55" (115.5 mm) long, 1.89" (48.0 mm) maximum diameter
Output Connector: Integral 3-pin XLRM-type
Accessories Included: AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
